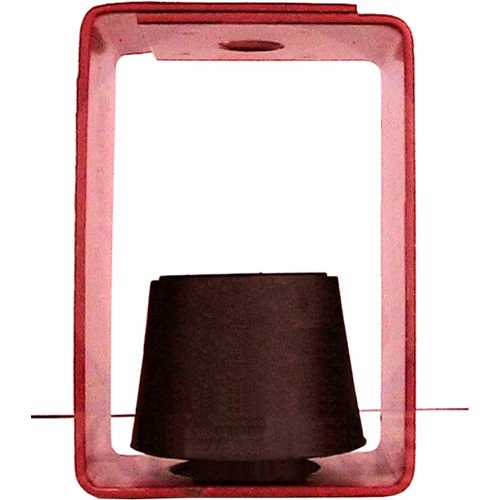

Andre NHD-2-A – Rubber In Shear Hangers 3"L x 2-1/4"W x 4-1/2"H
Original price was: $13.75.$9.63Current price is: $9.63.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.
NHD Series Hangers are neoprene elements housed in sturdy steel brackets. The element includes top and bottom steel plates for uniform load distribution. All elements are color coded for easy identification. The element incorporates a projected collar to prevent metal to metal contact between the rod and bracket. NOTES:Bracket: Blue Powder CoatedHanger Rods and Nuts not includedDO NOT exceed maximum load by more than 5.0 %
| Deflection at Solid Load | 1/2 in |
|---|---|
| Weight | 1.4 lbs |
| Max Load | 165 lbs |
| Mount Height | 4-1/2 in |
| Height | 4-1/2 in |
| Bolt Size | 1/2 in |
| Width | 2-1/4 in |
| Length | 3 in |
| Deflection | 1/2 in |
| Color Family | Red |
| Package Quantity | 1 |
| Manufacturers Part Number | NHD-2-A |
| Rated Load | 165 |
| Brand | Andre |
