Andre SHC-203-206 – Spring Hangers 3"L x 3"W x 7-1/2"H
Original price was: $48.95.$34.27Current price is: $34.27.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.

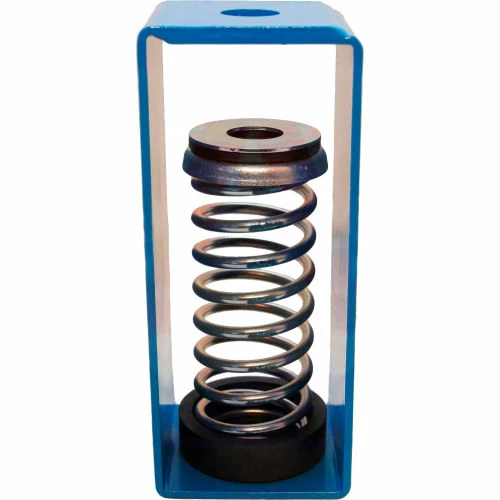

SHC spring hangers are large diameter steel springs housed in rectangular steel brackets. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled.
| Deflection at Solid Load | 2 in |
|---|---|
| Weight | 3.5 lbs |
| Max Load | 1100 lbs |
| Mount Height | 7-1/2 in |
| Height | 7-1/2 in |
| Bolt Size | 7/8 in |
| Length | 3 in |
| Width | 3 in |
| Deflection | 2 in |
| Color Family | Blue |
| Package Quantity | 1 |
| Manufacturers Part Number | SHC-203-206 |
| Rated Load | 726 – 825 |
| Brand | Andre |
