Andre SHD-105 – Spring Hangers 3"L x 2-1/4"W x 5-1/2"H

Original price was: $20.75.Current price is: $14.53.

SKU: Andre WBB2085535 Categories: Hanger Mounts, Mounts, Pads & Vibration Dampers Tags: 1, 244 - 278, Andre, Blue, Fasteners & Hardware, SHD-105

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

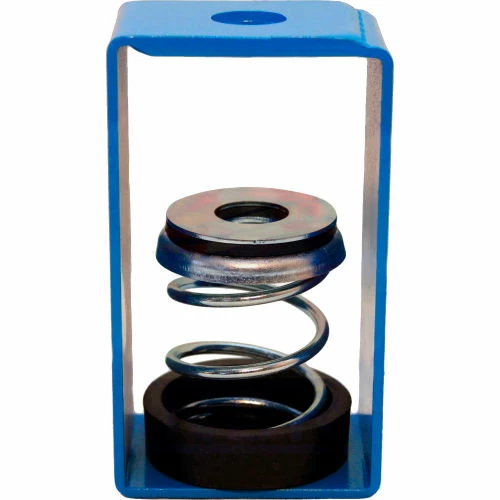

Andre SHD-105 – Spring Hangers 3″L x 2-1/4″W x 5-1/2″H

SHD series spring hangers are large diameter steel springs housed in rectangular steel brackets. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled.NOTES:Bracket: Blue powder coatedSpring: Hot dip galvanizedDesign allows angular hanger misalignmentHanger rods and nuts not included

Deflection at Solid Load	13/16 in
Weight	2 lbs
Max Load	370 lbs
Mount Height	5-1/2 in
Height	5-1/2 in
Bolt Size	1/2 in
Length	3 in
Width	2-1/4 in
Deflection	13/16 in
Color Family	Blue
Package Quantity	1
Manufacturers Part Number	SHD-105
Rated Load	244 – 278
Brand	Andre
