Andre SHNA-1D-102 – Neoprene Spring Hangers 3"L x 3"W x 8"H
Original price was: $31.95.$22.37Current price is: $22.37.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.

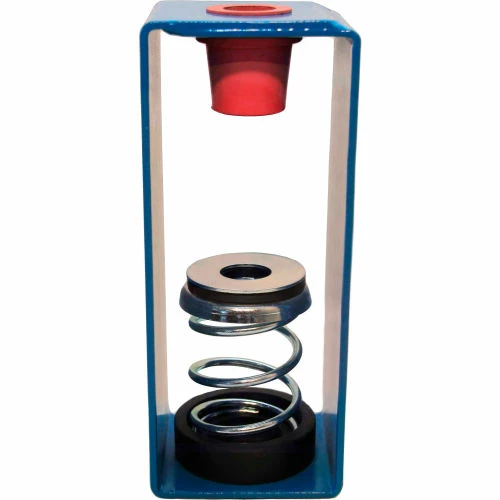

SHNA spring hangers are large diameter steel springs housed in rectangular steel brackets. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled.NOTES:Bracket: Blue powder coatedSpring: Hot dip galvanizedBottom cup: NeopreneTop element: NeopreneDesign allows angular hanger misalignmentHanger rods and nuts not included
| Deflection at Solid Load | 1-5/16 in |
|---|---|
| Weight | 3 lbs |
| Max Load | 100 lbs |
| Mount Height | 8 in |
| Height | 8 in |
| Bolt Size | 1/2 in |
| Length | 3 in |
| Width | 3 in |
| Deflection | 1-5/16 in |
| Color Family | Blue |
| Package Quantity | 1 |
| Manufacturers Part Number | SHNA-1D-102 |
| Rated Load | 66 – 75 |
| Brand | Andre |
Be the first to review “Andre SHNA-1D-102 – Neoprene Spring Hangers 3"L x 3"W x 8"H”
