Andre SHNA-2B-114 – Neoprene Spring Hangers 3"L x 3"W x 8"H

Original price was: $37.95.Current price is: $26.57.

SKU: Andre WBB2085614 Categories: Hanger Mounts, Mounts, Pads & Vibration Dampers Tags: 1, 149 - 169, Andre, Blue, Fasteners & Hardware, SHNA-2B-114

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

Andre SHNA-2B-114 – Neoprene Spring Hangers 3″L x 3″W x 8″H

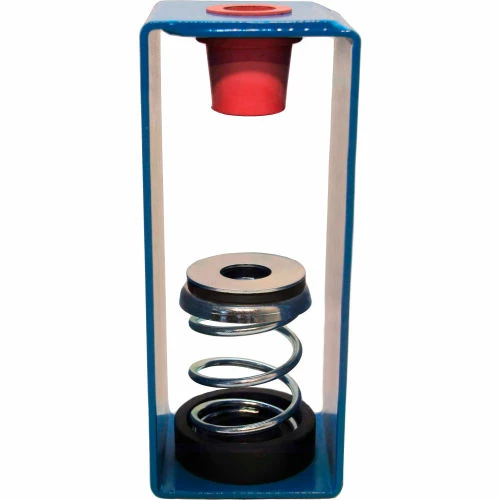

SHNA spring hangers are large diameter steel springs housed in rectangular steel brackets. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled.NOTES:Bracket: Blue powder coatedSpring: Hot dip galvanizedBottom cup: NeopreneTop element: NeopreneDesign allows angular hanger misalignmentHanger rods and nuts not included

Deflection at Solid Load	1-5/16 in
Weight	3.2 lbs
Max Load	225 lbs
Mount Height	8 in
Height	8 in
Bolt Size	1/2 in
Length	3 in
Width	3 in
Deflection	1-5/16 in
Color Family	Blue
Package Quantity	1
Manufacturers Part Number	SHNA-2B-114
Rated Load	149 – 169
Brand	Andre
