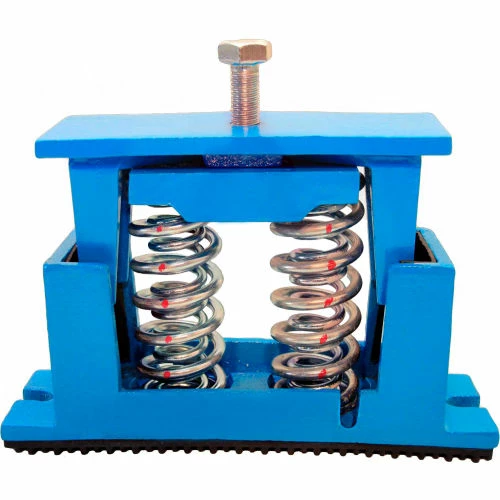

Andre YE-2-122-123 – Spring Mounts 10-1/4"L x 2-7/8"W x 5-3/4"H

Type “Y-2” series mounts with one inch deflection solve troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection. “Y-2” type spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The Y-2 features a three piece cast iron housing for the springs. The mounts are provided with slotted mounting holes and a non-skid elastomeric acoustic pad on the base for bolting to the floor. Resilient elastomeric snubbers on inner panels prevent metal to metal contact and allow the springs to function properly. These Mounts have a built in levelling device (external or internal). These spring mounts can also be supplied with flat top or non-skid neoprene top load surfaces in case of internal level adjustment. All springs are hot dip galvanized.
