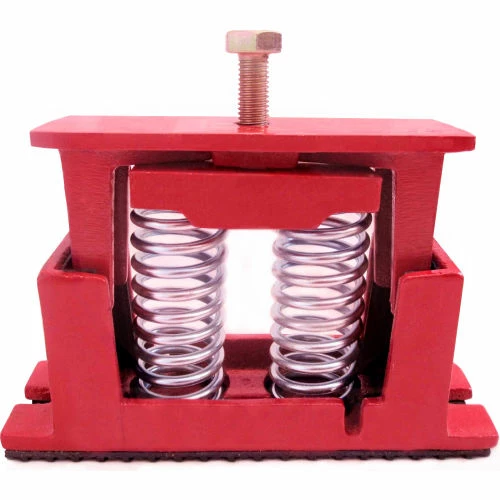

Andre YE-2-205 – Spring Mounts 10-1/4"L x 2-7/8"W x 6-3/4"H

Type “Y-2” series mounts with two inch deflection solve critical vibration problems. These mounts are preferred over the one inch deflection mounts and most rubber mounts due to their higher static deflection. These mounts are normally recommended for building structures where negligible vibration transmission to the building is required. “Y-2” type spring mounts with two inch deflection are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The Y-2 features a three piece cast iron and powder coated housing for the springs. The mounts are provided with slotted mounting holes and a non-skid elastomeric acoustic pad on the base for bolting to the floor. Resilient elastomeric rubbers on inner panels prevent metal to metal contact and allow the springs to function properly. These mounts have a built in levelling device (external or internal). These spring mounts can also be supplied with flat top or non-skid neoprene top in case of internal level adjustment. All springs are hot dip galvanized.
