Andre YE-4-119 – Spring Mounts 10-1/4"L x 5"W x 6"H

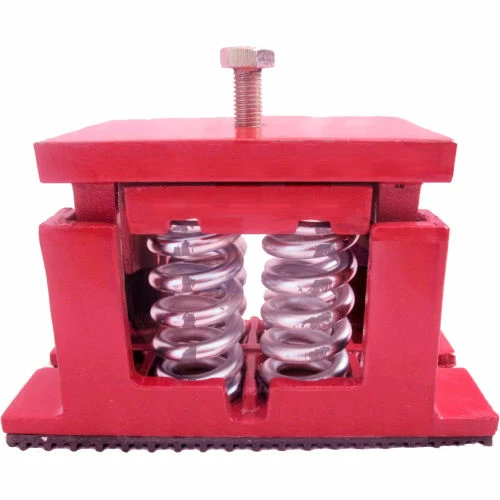

Type “Y-4” series mounts with one inch deflection solves troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection of the springs. “Y-4” series spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The Y-4 features a three piece cast iron and powder coated housing for the springs. The mounts are provided with slotted mounting holes and a non-skid elastomeric pad on the base for bolting to the floor. Resilient elastomeric rubbers on the inner panel prevent metal to metal contact and allow the springs to function properly. The mount has a built in leveling device (external or internal). These spring mounts can also be supplied with flat top or non-skid neoprene top load surfaces in case of internal level adjustment. All springs are hot dip galvanized.
