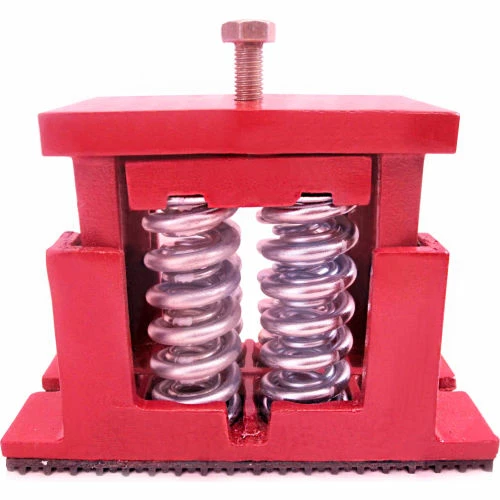

Andre YE-4-204 – Spring Mounts 10-1/4"L x 5"W x 7"H

Type “Y-4” series mounts with two inch deflection solve critical vibration problems. These mounts are preferred over the one inch deflection mounts and most rubber mounts due to the higher static deflection of the springs. These mounts are normally recommended for building structures when negligible vibration transmission to the building is required. “Y-4” type spring mounts with two inch deflection are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The Y-4 features a three piece cast iron housing for the springs. The mounts are provided with slotted mounting holes and a non-skid elastomeric acoustic pad on the base for bolting to the floor. Resilient elastomeric rubbers on the inner panel prevent metal to metal contact and allow the srpings to function properly. These mounts have a built in leveling device (external or internal). These spring mounts can also be supplied with flat top or non-skid neoprene top in case of external adjustment. All springs are hot dip galvanized.
