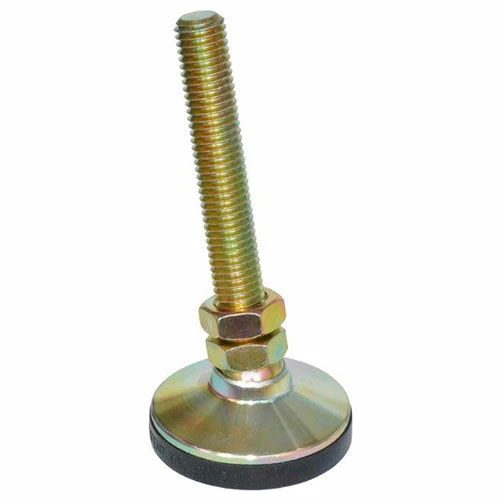

J.W. Winco 10T4SNS SNSM-2.50-5/8X11-4-ST "Snap-Lock" Non-Skid Leveling Mounts Steel, Threaded Stud
Original price was: $26.95.$18.87Current price is: $18.87.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.
Unlike the standard glue-on non-skid elastomer pad, this unique snap-on elastomer cup gives greater stability to non-skid application requirements. Especially durable when equipment needs to be moved or repositioned. Mount swivels 7 1/2° to all sides of the center line to adjust to uneven surfaces.
Features:
- Leveling mount made of carbon steel with yellow zinc plated finish
- Hardened stud with ball end is machined from solid bar
- Non-skid cup pad
- Neoprene rubber
| Base Height (L2) | 1.25" |
|---|---|
| Hex Flats (A/F) | 0.88" |
| Base Diameter (D1) | 2.50" |
| Pad Height (l3) | 0.37" |
| Max Load | 4500 lbf lbs |
| Thread Length (l1) | 4.00" |
| Thread (D2) | 5/8-11 |
| Material | Carbon Steel, Neoprene Rubber |
| Brand | J.W. Winco |
