J.W. Winco 3T2500SNT SNSM-1-1/4X20-2.50-NI "Snap-Lock" Non-Skid Leveling Mounts SS, Threaded Stud

Original price was: $17.00.Current price is: $11.90.

SKU: J.W. Winco WBB2298200 Categories: Machine Leveling Mounts, Mounts, Pads & Vibration Dampers Tags: 1/4-20, 303 Stainless Steel, Neoprene Rubber, Fasteners & Hardware, J.W. Winco

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

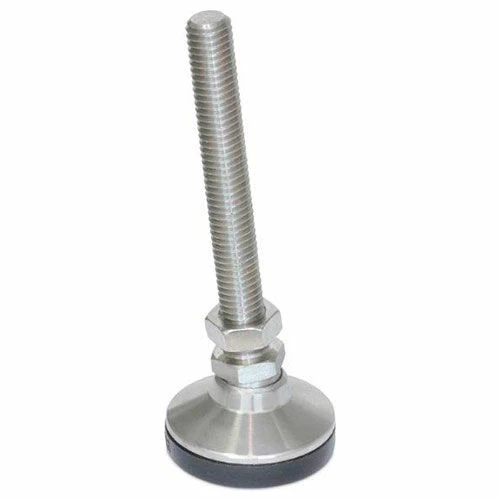

J.W. Winco 3T2500SNT SNSM-1-1/4X20-2.50-NI “Snap-Lock” Non-Skid Leveling Mounts SS, Threaded Stud

Unlike the standard glue-on non-skid elastomer pad, this unique snap-on elastomer cup gives greater stability to non-skid application requirements. Especially durable when equipment needs to be moved or repositioned. Mount swivels 7 1/2° to all sides of the center line to adjust to uneven surfaces.

Features:

Leveling mount made from 303 stainless steel
Hardened stud with ball end is machined from solid bar
Non-skid cup pad
Neoprene rubber

Base Height (L2)	0.69"
Hex Flats (A/F)	0.50"
Base Diameter (D1)	1.00"
Pad Height (l3)	0.22"
Max Load	750 lbf lbs
Thread Length (l1)	2.50"
Thread (D2)	1/4-20
Material	303 Stainless Steel, Neoprene Rubber
Brand	J.W. Winco
