J.W. Winco 5T4SNS SNSM-1.25-5/16X18-4-ST "Snap-Lock" Non-Skid Leveling Mounts Steel, Threaded Stud

Original price was: $13.00.Current price is: $9.10.

SKU: J.W. Winco WBB2298210 Categories: Machine Leveling Mounts, Mounts, Pads & Vibration Dampers Tags: 5/16-18, Carbon Steel, Neoprene Rubber, Fasteners & Hardware, J.W. Winco

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

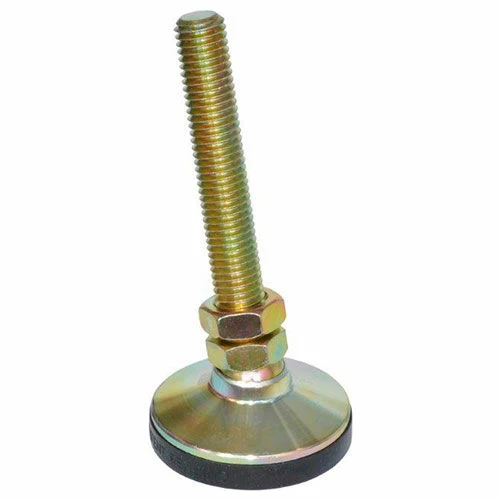

J.W. Winco 5T4SNS SNSM-1.25-5/16X18-4-ST “Snap-Lock” Non-Skid Leveling Mounts Steel, Threaded Stud

Unlike the standard glue-on non-skid elastomer pad, this unique snap-on elastomer cup gives greater stability to non-skid application requirements. Especially durable when equipment needs to be moved or repositioned. Mount swivels 7 1/2° to all sides of the center line to adjust to uneven surfaces.

Features:

Leveling mount made of carbon steel with yellow zinc plated finish
Hardened stud with ball end is machined from solid bar
Non-skid cup pad
Neoprene rubber

Base Height (L2)	0.88"
Hex Flats (A/F)	0.63"
Base Diameter (D1)	1.25"
Pad Height (l3)	0.22"
Max Load	1875 lbf lbs
Thread Length (l1)	4.00"
Thread (D2)	5/16-18
Material	Carbon Steel, Neoprene Rubber
Brand	J.W. Winco
