J.W. Winco 8T2SNS SNSM-1.88-1/2X13-2-ST "Snap-Lock" Non-Skid Leveling Mounts Steel, Threaded Stud

Original price was: $14.50.Current price is: $10.15.

SKU: J.W. Winco WBB2298197 Categories: Machine Leveling Mounts, Mounts, Pads & Vibration Dampers Tags: 1/2-13, Carbon Steel, Neoprene Rubber, Fasteners & Hardware, J.W. Winco

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

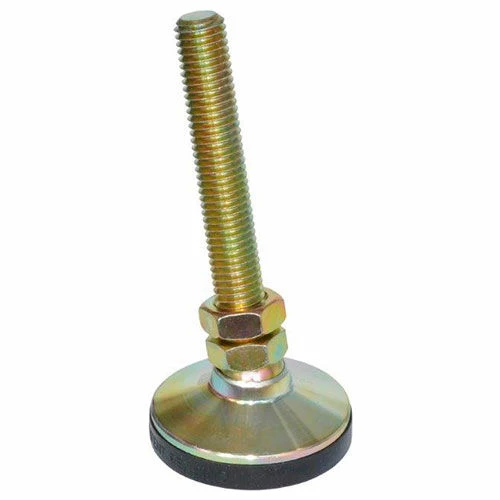

J.W. Winco 8T2SNS SNSM-1.88-1/2X13-2-ST “Snap-Lock” Non-Skid Leveling Mounts Steel, Threaded Stud

Unlike the standard glue-on non-skid elastomer pad, this unique snap-on elastomer cup gives greater stability to non-skid application requirements. Especially durable when equipment needs to be moved or repositioned. Mount swivels 7 1/2° to all sides of the center line to adjust to uneven surfaces.

Features:

Leveling mount made of carbon steel with yellow zinc plated finish
Hardened stud with ball end is machined from solid bar
Non-skid cup pad
Neoprene rubber

Base Height (L2)	1.12"
Hex Flats (A/F)	0.75"
Base Diameter (D1)	1.88"
Pad Height (l3)	0.31"
Max Load	3750 lbf lbs
Thread Length (l1)	2.00"
Thread (D2)	1/2-13
Material	Carbon Steel, Neoprene Rubber
Brand	J.W. Winco
