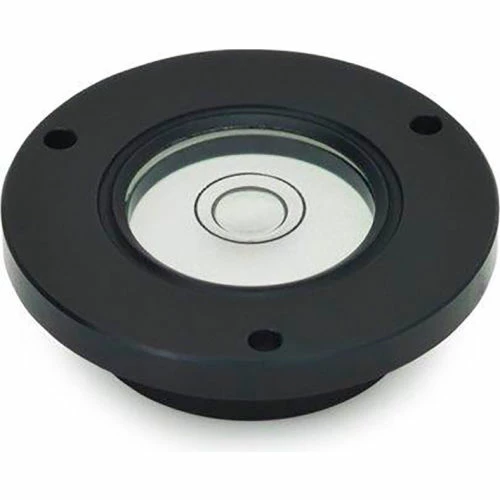

J.W. Winco GN2277 Bull’s Eye Levels, Aluminum, Insert Collar, 0.71" Hub Dia, 1.18" Base Dia, Black

Original price was: $22.25.Current price is: $15.58.

SKU: J.W. Winco WBB2683231 Categories: Leveling & Toggle Pads, Mounts, Pads & Vibration Dampers Tags: Aluminum, Anodized, Black, Fasteners & Hardware, GN2277, Import, Insert Collar, J.W. Winco

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

GN 2277 bull’s eye levels with mounting flange are used to check the horizontal position of jigs, machines, devices, appliances and instruments. The spirit levels are aligned in relation to the reference surface so that the bubble is located inside the marking ring when the horizontal position of the contact surface is achieved.

Dimension D2	0.47 in
Hub Diameter	0.71"
Height	0.43 in
Mounting Hole Diameter	0.13 in
Dimension H2	0.12 in
Dimension D1	1.18 in
Type	Insert Collar
Color Family	Black
Series	GN2277
Country of Origin	Import
Finish	Anodized
Material	Aluminum
Package Quantity	1
Manufacturers Part Number	2277-ALS-30-K-30-B
Brand	J.W. Winco
