Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.

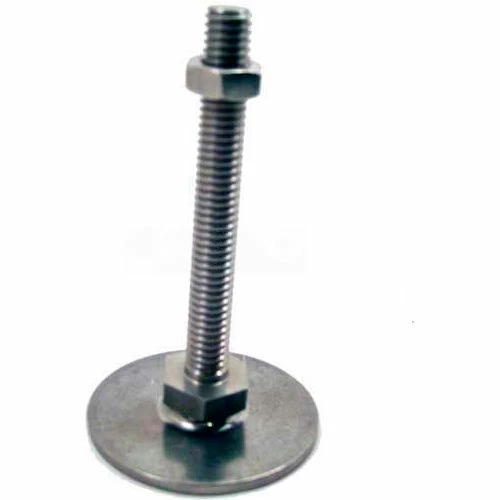

J.W. Winco Leveling Foot, 5/8-11 x 5.91" Stud, 3.15" Base Dia, 6.58"H, 2700 Lbs. Cap, 304 SS
$22.75 Original price was: $22.75.$15.93Current price is: $15.93.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.

| Stud Length | 5.91 in |
|---|---|
| Load Capacity Range | 2500 – 5000 lbs |
| Weight Capacity | 2,700 lbs |
| Thread | 5/8-11 in |
| Height | 6.58 in |
| Unit of Measurement | Inch (Imperial) |
| Base Diameter | 3.15 in |
| Type | Threaded |
| Stud | Pivots Up To 6° |
| Country of Origin | Import |
| Material | 304 Series Stainless Steel |
| Description | Leveling Foot |
| Manufacturers Part Number | 41-80-5/8X11-150-D0-UK |
| Leveler Material | 304 Series Stainless Steel |
| Brand | J.W. Winco |
