Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.

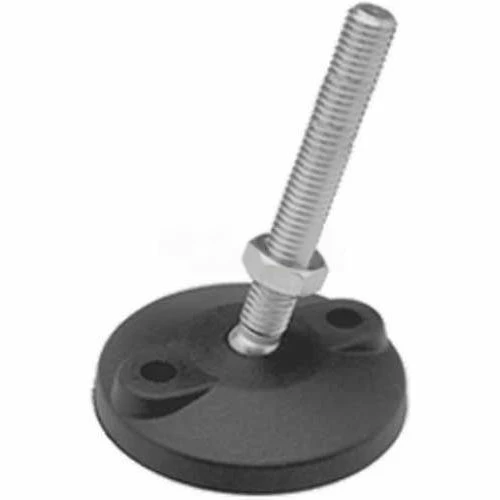

J.W. Winco Leveling Mount w/ Lag Bolt Holes, 3/4-10 x 4" Stud, 3.15" Base Dia, 5.375"H, 5000 lbs Load Cap – USA
$13.50 Original price was: $13.50.$9.45Current price is: $9.45.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.

| Stud Length | 4.00 in |
|---|---|
| Load Capacity Range | 2500 – 5000 lbs |
| Weight Capacity | 5,000 lbs |
| Thread | 3/4-10 in |
| Height | 5.38 in |
| Unit of Measurement | Inch (Imperial) |
| Base Diameter | 3.15 in |
| Country of Origin | Made in USA |
| Material | Glass Filled Nylon Plastic |
| Description | Leveling Foot (w/ Bolt & Lag Bolt Holes) |
| Manufacturers Part Number | 11T4WP2 |
| Leveler Material | Zinc Plated Steel |
| Brand | J.W. Winco |
Be the first to review “J.W. Winco Leveling Mount w/ Lag Bolt Holes, 3/4-10 x 4" Stud, 3.15" Base Dia, 5.375"H, 5000 lbs Load Cap – USA” Cancel reply
