J.W. Winco Vibration Mount, 2 Tapped Holes, 3.94" Dia, 75mm H, M16 x 2.0 Thread

Original price was: $42.95.Current price is: $30.07.

SKU: J.W. Winco WBB831585 Categories: Machine Leveling Mounts, Mounts, Pads & Vibration Dampers Tags: 351-100-75-M16-EE-55, 55, Black, Fasteners & Hardware, Import, J.W. Winco, Natural rubber (NR), Vulcanized, Steel, Zinc Plated, Blue Passivated, Molded In

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

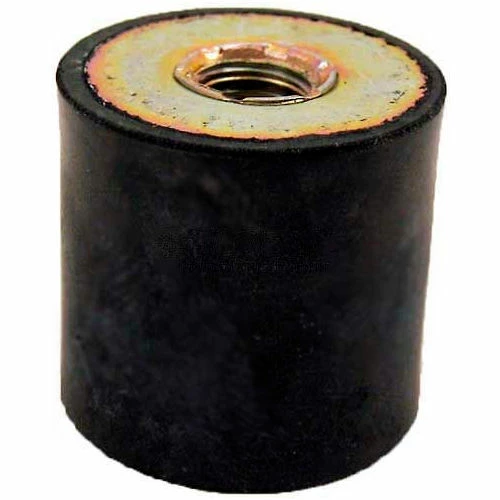

Vibration Mount, 2 Tapped Holes, 3.94″ Dia, 75mm H, M16 x 2.0 Thread

Vibration isolation mounts, also known as vibration mounts, anti-vibration mounts, vibration bobbins or rubber bumpers, are suitable for the elastic mounting of machine units such as motors, compressors and pumps. These rubber mounts are simple and economical construction elements. Their resilience and their broad range of different sizes and dimensions allow these mounts to be used in many applications that require vibration isolation.

Spring Rate	384 Ft. Lbs./In.
Load Capacity Range	5000+ Ft. Lbs. lb-ft
Weight Capacity	7200 Ft. Lbs.
Thread	M16 x 2.0 in
Height	75 mm
Max Travel	18.75mm
Unit of Measurement	Metric
Base Diameter	3.94 in
Body Mount Material	Natural rubber (NR), Vulcanized
Color Family	Black
Durometer	55
Country of Origin	Import
Insert Material	Steel, Zinc Plated, Blue Passivated, Molded In
Manufacturers Part Number	351-100-75-M16-EE-55
Cover Plate Material	Steel, Zinc Plated, Blue Passivated, Molded In
Brand	J.W. Winco
