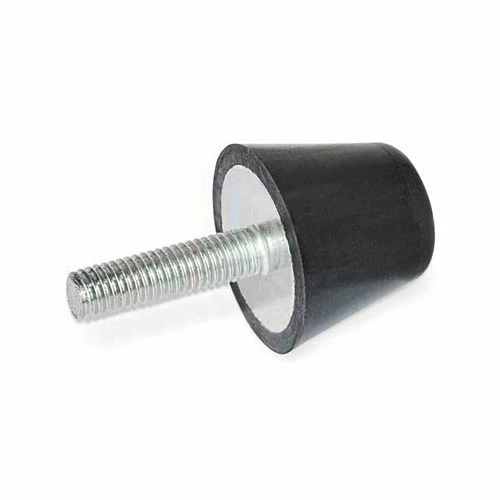

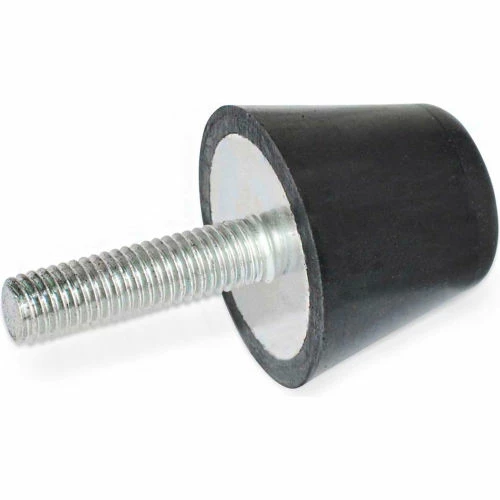

J.W. Winco Vibration/Shock Absorption Mount, Conical, 1.02" H, 205 Max Load, 253-32-5/16X18-9.5-55

J.W. Winco Vibration/Shock Absorption Mount, Conical, 1.02" H, 205 Max Load, 253-32-5/16X18-9.5-55 - Image 2

J.W. Winco Vibration/Shock Absorption Mount, Conical, 1.02" H, 205 Max Load, 253-32-5/16X18-9.5-55 - Image 3

J.W. Winco Vibration/Shock Absorption Mount, Conical, 1.02" H, 205 Max Load, 253-32-5/16X18-9.5-55

Original price was: $4.08.Current price is: $2.86.

SKU: J.W. Winco WBB2216581 Categories: Machine Leveling Mounts, Mounts, Pads & Vibration Dampers Tags: 253-32-5/16X18-9.5-55, 55, Black, Fasteners & Hardware, Import, J.W. Winco, NBR Synthetic Rubber (Perbunan), Black, Vulcanized, Steel, Zinc Plated, Blue Passivated, Molded In

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

J.W. Winco Vibration/Shock Absorption Mount, Conical, 1.02″ H, 205 Max Load, 253-32-5/16X18-9.5-55

Vibration / shock absorption mounts, also known as shock absorbing mounts, vibration mounts, anti-vibration mounts, vibration bobbins or rubber bumpers, are frequently used as end-stop bumpers, e.g., for conveyor trolleys. They absorb most of the accumulated kinetic energy on impact. They act as dampers and prevent damaging shock and rebound. They also act as sound dampers. These isolation mounts are also used as leveling feet.

Spring Rate	799 Ft. Lbs./In.
Body Mount Material	NBR Synthetic Rubber (Perbunan), Black, Vulcanized
Cover Plate Material	Steel, Zinc Plated, Blue Passivated, Molded In
Manufacturers Part Number	253-32-5/16X18-9.5-55
Insert Material	Steel, Zinc Plated, Blue Passivated, Molded In
Country of Origin	Import
Durometer	55
Color Family	Black
Base Diameter	1.26 in
Stud Length	0.38 in
Unit of Measurement	Inch (Imperial)
Max Travel	0.26"
Height	1.02 in
Top Diameter	0.83 in
Thread	5/16-18 in
Weight Capacity	205 Ft. Lbs.
Load Capacity Range	100 – 250 Ft. Lbs. lb-ft
Brand	J.W. Winco
