J.W. Winco Vibration/Shock Absorption Mount, Conical, 16mm Height, 25 Max Load, 254-19-M5-20-55

J.W. Winco Vibration/Shock Absorption Mount, Conical, 16mm Height, 25 Max Load, 254-19-M5-20-55 - Image 2

J.W. Winco Vibration/Shock Absorption Mount, Conical, 16mm Height, 25 Max Load, 254-19-M5-20-55 - Image 3

J.W. Winco Vibration/Shock Absorption Mount, Conical, 16mm Height, 25 Max Load, 254-19-M5-20-55

Original price was: $5.80.Current price is: $4.06.

SKU: J.W. Winco WBB2216607 Categories: Machine Leveling Mounts, Mounts, Pads & Vibration Dampers Tags: 254-19-M5-20-55, 55, Black, Fasteners & Hardware, Import, J.W. Winco, NBR Synthetic Rubber, Vulcanized, Stainless Steel, Molded In

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

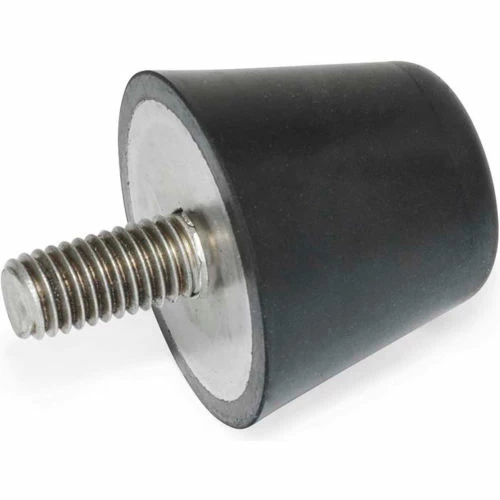

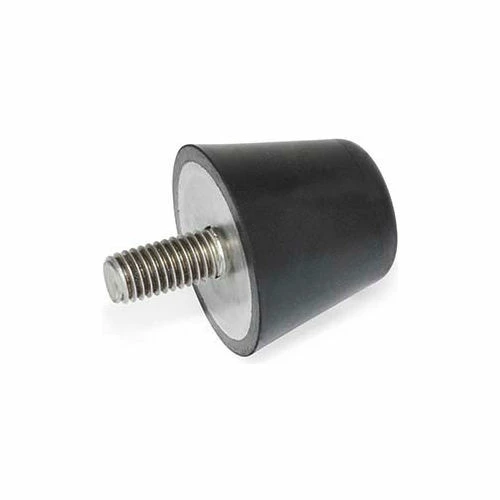

J.W. Winco Vibration/Shock Absorption Mount, Conical, 16mm Height, 25 Max Load, 254-19-M5-20-55

Vibration / shock absorption mounts, also known as shock absorbing mounts, vibration mounts, anti-vibration mounts, vibration bobbins or rubber bumpers, are frequently used as end-stop bumpers, e.g., for conveyor trolleys. They absorb most of the accumulated kinetic energy on impact. They act as dampers and prevent damaging shock and rebound. They also act as sound dampers. These isolation mounts are also used as leveling feet.

Spring Rate	160 Ft. Lbs./In.
Body Mount Material	NBR Synthetic Rubber, Vulcanized

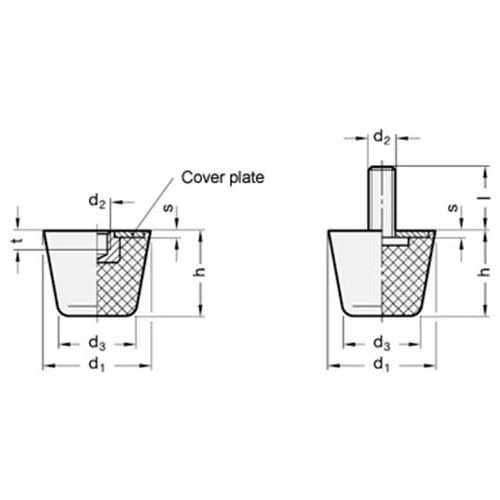

Cover Plate Material	Stainless Steel, Molded In
Manufacturers Part Number	254-19-M5-20-55
Insert Material	Stainless Steel, Molded In
Country of Origin	Import
Durometer	55
Color Family	Black
Base Diameter	0.75 in
Stud Length	0.79 in
Unit of Measurement	Metric
Max Travel	0.16"
Height	16 mm
Top Diameter	0.47 in
Thread	M5 x 0.8 in
Weight Capacity	25 Ft. Lbs.
Load Capacity Range	0 – 100 Ft. Lbs. lb-ft
Brand	J.W. Winco
