Sale!

J.W. Winco Vibration/Shock Absorption Mount, Tapped Hole, .98" Dia, 20mm H, M6 x 1.0 Thread

Original price was: $1.43.Current price is: $1.00.

SKU: J.W. Winco WBB831429 Categories: Machine Leveling Mounts, Mounts, Pads & Vibration Dampers Tags: 352-25-20-M6-E-55, 55, Black, Fasteners & Hardware, Import, J.W. Winco, Natural rubber (NR), Vulcanized, Steel, Zinc Plated, Blue Passivated, Molded In

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

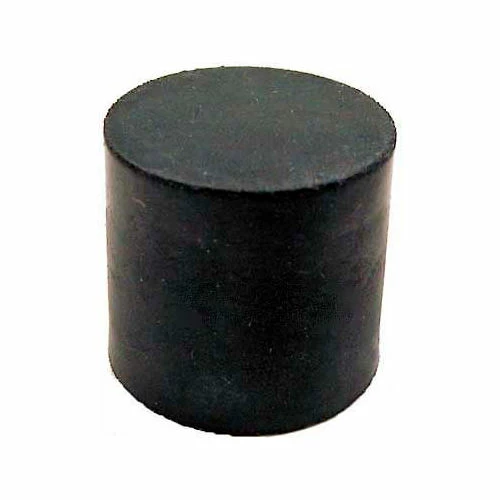

Vibration/Shock Absorption Mount, Tapped Hole, .98″ Dia, 20mm H, M6 x 1.0 Thread

Vibration / shock absorption mounts, also known as vibration isolation mounts, anti-vibration mounts, vibration bobbins or rubber bumpers, are used as end-stop bumpers, e.g., for conveyor trolleys. They absorb most of the accumulated kinetic energy on impact. They act as dampers and prevent damaging shock and rebound. They also act as sound dampers. These mounts are also used as leveling feet.

Spring Rate	112 Ft. Lbs./In.
Load Capacity Range	500 – 1000 Ft. Lbs. lb-ft
Weight Capacity	560 Ft. Lbs.
Thread	M6 x 1.0 in
Height	20 mm
Max Travel	5mm
Unit of Measurement	Metric
Base Diameter	1.00 in
Body Mount Material	Natural rubber (NR), Vulcanized
Color Family	Black
Durometer	55
Country of Origin	Import
Insert Material	Steel, Zinc Plated, Blue Passivated, Molded In
Manufacturers Part Number	352-25-20-M6-E-55
Cover Plate Material	Steel, Zinc Plated, Blue Passivated, Molded In
Brand	J.W. Winco
