GN 41 leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm2). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly.

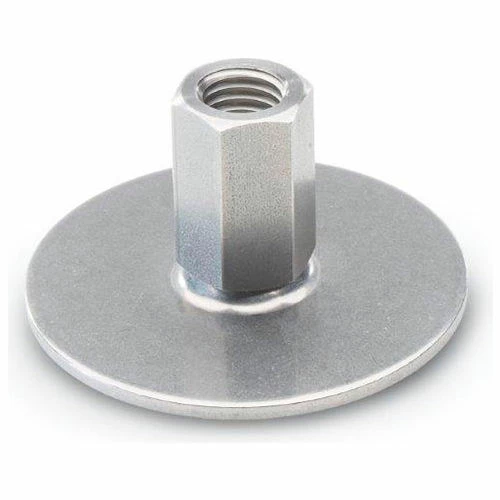

Leveling Foot – Tapped – 4500 Lbs. Capacity – 3.15" Base Dia. – J.W. Winco 41-80-3/4X10-45-D3-X
$22.75 Original price was: $22.75.$15.93Current price is: $15.93.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.

| Base Height | 1.77 in |
|---|---|
| Load Capacity Range | 2500 – 5000 lbs |
| Weight Capacity | 4,500 lbs |
| Thread | 3/4-10 in |
| Unit of Measurement | Inch (Imperial) |
| Base Diameter | 3.15 in |
| Type | Tapped |
| Series | GN41 |
| Country of Origin | Import |
| Material | Stainless Steel |
| Description | Leveling Foot w/ Vulcanized Rubber Underlay |
| Manufacturers Part Number | 41-80-3/4X10-45-D3-X |
| Leveler Material | Stainless Steel |
| Brand | J.W. Winco |
