GN40 Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.

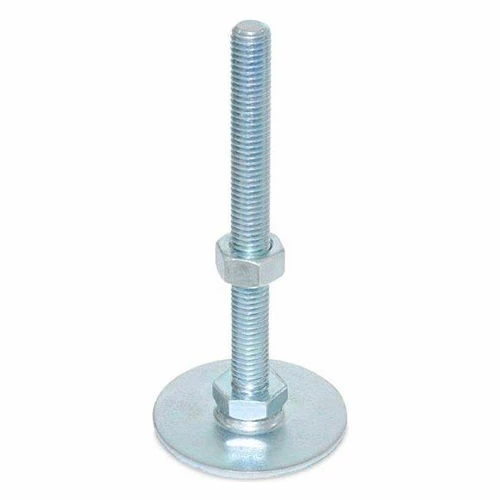

Leveling Foot – Threaded – 1575 Lbs. Capacity – 1.57" Base Dia. – J.W. Winco 40-40-3/8X16-125-A0-SK
$8.10 Original price was: $8.10.$5.67Current price is: $5.67.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.

| Base Height | 0.08 in |
|---|---|
| Stud Length | 4.92 in |
| Load Capacity Range | 1000 – 2500 lbs |
| Weight Capacity | 1,575 lbs |
| Thread | 3/8-16 in |
| Unit of Measurement | Inch (Imperial) |
| Base Diameter | 1.57 in |
| Type | Threaded |
| Series | GN40 |
| Country of Origin | Import |
| Material | Steel |
| Description | Leveling Foot |
| Manufacturers Part Number | 40-40-3/8X16-125-A0-SK |
| Leveler Material | Zinc Plated Steel w/ Blue Passivated Finish |
| Brand | J.W. Winco |
