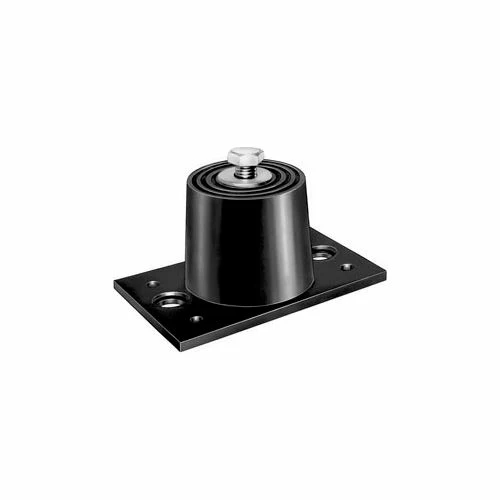

Mason Industries Neoprene Floor Mount Vibration Isolator – 3-3/16"L x 1-5/8"W x 1-1/2"H Green

Original price was: $21.25.Current price is: $14.88.

SKU: Mason Industries WBB250517 Categories: Compression & Shear Mounts, Mounts, Pads & Vibration Dampers Tags: 1, Double Deflection Floor Mount, Fasteners & Hardware, Green, Import, Mason Industries, ND-A-Green, Neoprene/Steel

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

Neoprene Mounting is a better isolator than isolation pads because they are thicker (taller) and provide more deflection. Top bolts and washers are provided for bolting to the equipment. The neoprene friction covering on the bottom generally eliminates bolting to the structure. This excellent all-purpose oil resistant mounting is used under compressors, blowers, air conditioning equipment, pumps, machine tools, transformers, etc. Used in compression only. Max Load 40-75 LBS. 3-3/16″L x 1-5/8″W x 1-1/2″H Overall Dimensions.

Max Deflection	0.35"
Length	3.19 in
Manufacturers Part Number	ND-A-Green
Package Quantity	1
Material	Neoprene/Steel
Country of Origin	Import
Color Family	Green
Type	Double Deflection Floor Mount
Width	1.63 in
Load Capacity Range	0 – 100 lbs
Unit of Measurement	Inch (Imperial)
Diameter	1.19 in
Height	1.50 in
Weight Capacity	75 lbs
Top Screw/Rod Diameter	5/16-18 x 3/4"
Mount Hole Diameter	0.31 in
Brand	Mason Industries
