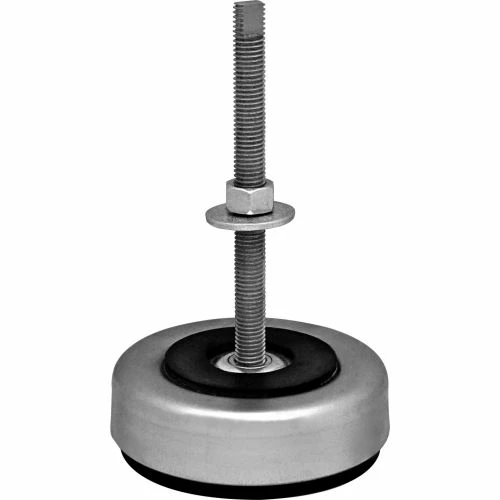

Vibrasystems Leveling Compression Shear Mount – 1/2-13 x 6" – 750 Lbs. – Vibra Systems NVS-1-50

Original price was: $68.95.Current price is: $48.27.

SKU: Vibrasystems WBB2238046 Categories: Compression & Shear Mounts, Mounts, Pads & Vibration Dampers Tags: 1, Fasteners & Hardware, Import, Metal and Rubber, NVS-1-50, Silver, Vibrasystems

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

NVS Compression shear mounts leveling solution is specifically for applications having both compression and shear loads. Precision fitted neoprene inserts provide maximum dampening of shock and shear forces. Recommended for lathes, milling machines, punch presses, heavy duty printing machinery, shears, brakes, injection mold, machines, grinders, and other industrial equipment where bolting to the floor is not required.

Features:

Built in leveling device enables quick easy and precise leveling of machinery
Circular groves on base of insert firmly anchor the machine to the floor preventing creeping or walking
Effectively isolates vertical and horizontal forces
Controls vibration shock and noise
Resistant to most oils and cleaning compounds
Meets OSHA requirements for anchoring machinery
Economical durable and saves on installation cost
Strong reliable construction provides long life

Max Deflection	0.13"
Length	3.38 in
Manufacturers Part Number	NVS-1-50
Package Quantity	1
Material	Metal and Rubber
Country of Origin	Import
Color Family	Silver
Width	3.38 in
Level Adjustment	0.38 in
Mount Height	7.75 in
Unit of Measurement	Inch (Imperial)
Bolt Size	1/2-13 x 6 in
Height	7.75 in
Weight Capacity	750 lbs
Mount Hole Diameter	3.38 in
Load Capacity Range	500 – 1000 lbs
Brand	Vibrasystems
