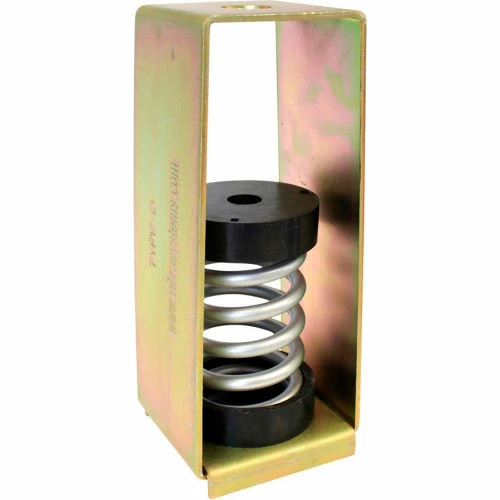

HSA series spring hangers are large diameter steel springs housed in rectangular steel housings. Assembly incorporates dual (steel & elastomer) washers for uniform load distribution and high frequency isolation. Springs have a 50% additional travel to solid load as per the ASRAE recommendations. Spring hangers are used for hanging fan coil units, air handling units, fans, pipes, and ducts. These spring hangers are normally used for critical areas where noise and vibration both need to be controlled.
Vibrasystems Vibra Systems HB-S-121 – 1" Deflection Antivibration Spring Hanger 60 Lbs. Solid Load Blue
$24.00 Original price was: $24.00.$16.80Current price is: $16.80.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.

| Weight | 1.8 lbs |
|---|---|
| Load @ Solid Weight | 60 lbs |
| Max Load | 40 lbs |
| Mount Height | 5-1/8 in |
| Height | 5-1/8 in |
| Bolt Size | 1/2 Maximum Rod in |
| Length | 2-7/8 in |
| Width | 2-3/4 in |
| Deflection | 1.3 in |
| Color Family | Gold |
| Material | Metal |
| Package Quantity | 1 |
| Manufacturers Part Number | HB-S-121 |
| Rated Load | 40 |
| Brand | Vibrasystems |
| Warranty | 6 Months After Installation |
