Vibrasystems Vibra Systems HB-S-127 – 1" Deflection Antivibration Spring Hanger 700 Lbs. Solid Load Green

Original price was: $24.00.Current price is: $16.80.

SKU: Vibrasystems WBB2088388 Categories: Hanger Mounts, Mounts, Pads & Vibration Dampers Tags: 1, 466, Fasteners & Hardware, Gold, HB-S-127, Metal, Vibrasystems

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

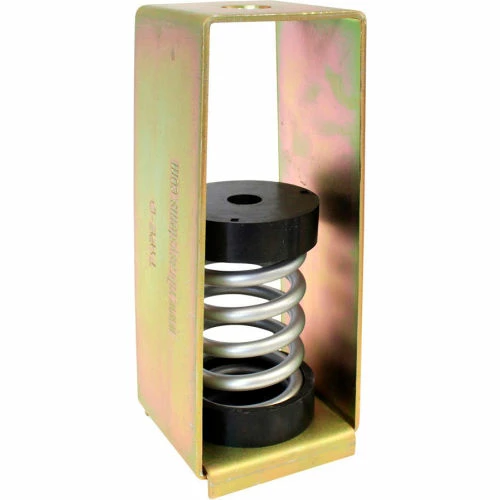

Vibra Systems HB-S-127 – 1″ Deflection Antivibration Spring Hanger 700 Lbs. Solid Load Green

HSA series spring hangers are large diameter steel springs housed in rectangular steel housings. Assembly incorporates dual (steel & elastomer) washers for uniform load distribution and high frequency isolation. Springs have a 50% additional travel to solid load as per the ASRAE recommendations. Spring hangers are used for hanging fan coil units, air handling units, fans, pipes, and ducts. These spring hangers are normally used for critical areas where noise and vibration both need to be controlled.

Weight	1 lbs
Load @ Solid Weight	700 lbs
Max Load	466 lbs
Mount Height	5-1/8 in
Height	5-1/8 in
Bolt Size	1/2 Maximum Rod in
Length	2-7/8 in
Width	2-3/4 in
Deflection	0.45 in
Color Family	Gold
Material	Metal
Package Quantity	1
Manufacturers Part Number	HB-S-127
Rated Load	466
Brand	Vibrasystems
Warranty	6 Months After Installation
