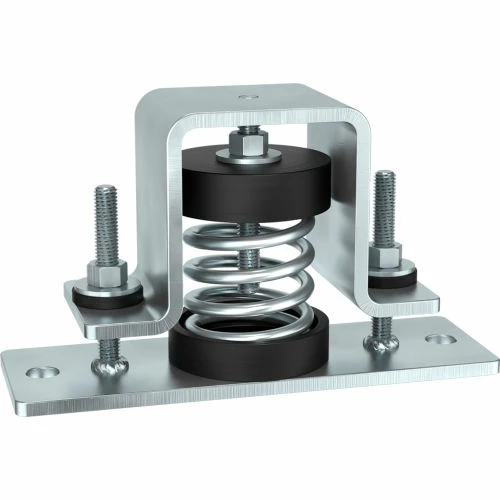

Vibrasystems Vibra Systems Inc. SMSR-BF-409-150 2" Deflection Open Spring Mount Isolator W/ Flat Top

Vibrasystems Vibra Systems Inc. SMSR-BF-409-150 2" Deflection Open Spring Mount Isolator W/ Flat Top - Image 2

Vibrasystems Vibra Systems Inc. SMSR-BF-409-150 2" Deflection Open Spring Mount Isolator W/ Flat Top - Image 3

Vibrasystems Vibra Systems Inc. SMSR-BF-409-150 2" Deflection Open Spring Mount Isolator W/ Flat Top

Original price was: $200.95.Current price is: $92.99.

SKU: Vibrasystems WBB3086703 Categories: Mounts, Pads & Vibration Dampers, Spring Floor Mounts Tags: 1650, Fasteners & Hardware, Silver, SMSR-BF-409-150, Steel, Vibrasystems

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

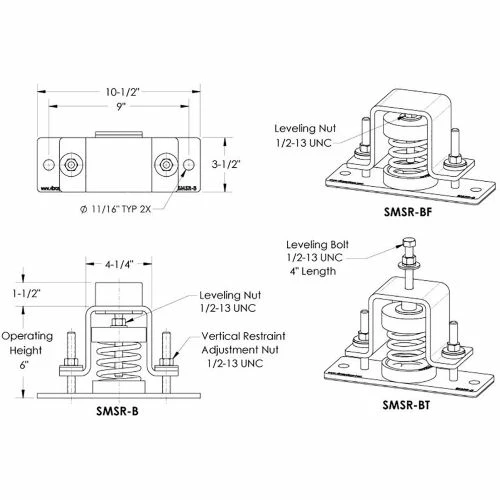

SMSR-B / BF / BT spring mounts are designed to provide efficient isolation from critical vibrations and all-directional restraint from vertical and horizontal forces, as well as from forces due to seismic activities and high wind loads. There are three available configurations:

SMSR-B: Top with a bracket and inside levelling adjustment feature
SMSR-BF: Flat top with an inside levelling adjustment feature
SMSR-BT: Bolted top with levelling adjustment feature

Recommended for: HVAC equipment, fan air circulation systems, compressors, pumps, chillers, AC units, cooling towers, inertia bases, etc.

Features:

Steel housing designed to withstand seismic and high wind forces
Available 1″ and 2″ deflection at rated load
All springs at rated loads have 50% additional travel to solid load
Safety factor – Springs will accommodate 50% extra load from rated load to solid load
Certified ASHRAE 171-2017
Zinc plated housing for excellent corrosion resistance
All springs are coated with baked enamel for good corrosion resistance
Springs are color-coded for easy field identification
All mounts elements are safe at solid load
