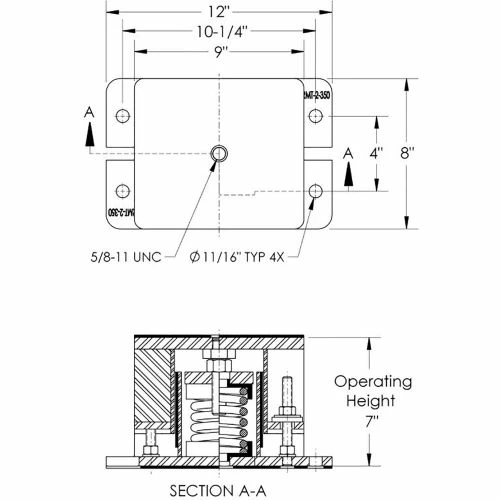

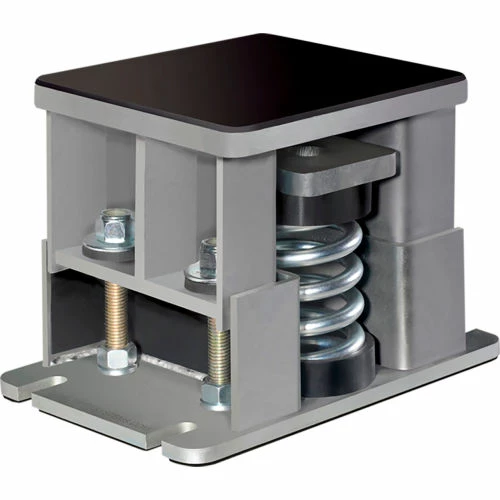

Vibrasystems Vibra Systems Inc. SRMF-2-352 1" Deflection Seismic Restrained Spring Mount Isolator W/ Flat Top

SRMT/F series are heavy-duty seismic restrained mounts with unique sliding channels designed to withstand lateral loads in combination with vertical loads.

Vibrasystems isolators are tested and certified to ASHRAE 171-2017 for wind and seismic load resistance using cyclic loading in multiple directions. This protocol is more suited for a variety of applications than the OSHPD OPM program, which is only for seismic loads and is intended to provide attachment details for specific equipment, with limited application to other equipment.

Using the seismic and wind capacities in the Vibrasystems certification, a consulting engineer can select the proper isolator based on the demand forces calculated for any configuration of isolators. This gives the engineer flexibility to use more or larger isolators as needed to meet the load demand.

There are two available configurations:

SRMF: flat top with an inside levelling adjustment feature

SRMT: bolted top with levelling adjustment feature

Recommended equipment, fan air circulation systems, compressors, pumps, chillers, AC units, cooling towers, inertia bases, etc

Features:

• All springs at rated loads have 50% additional travel to solid load
• All mounts’ elements are safe at solid load
• Safety factor – Springs will accommodate 50% extra load from rated load to solid load
• Recommended load range: from 50% of maximum load to maximum load
• Certified ASHRAE 171-2017
• Zinc plates housings and springs provide good corrosion resistance
• Elastomer spring base cap provides better vibration isolation, load distribution, and noise reduction
• Springs are color coded and easily replaceable
• Rugged welded steel housing designed to withstand seismic and high wind forces
• Anti-skid rubber acoustical pad
