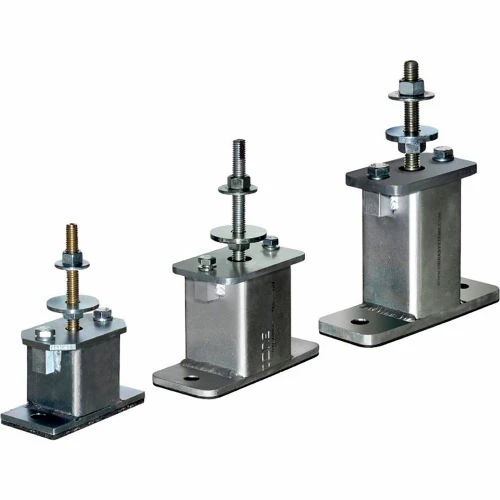

Vibrasystems Vibra Systems Inc. SRMT-020 1/2" Deflection Seismic Restrained Spring Mount Isolator

SRMT series mounts are designed to provide efficient isolation from critical vibrations and all-directional restraint from vertical and horizontal forces, as well as from forces due to seismic activities and high wind loads. Recommended For: HVAC equipment, fan air circulation systems, compressors, pumps, chillers, AC units, cooling towers, inertia bases, etc.

Features:

• All springs at rated loads have 50% additional travel to solid load
• Safety factor will accommodate 50% extra load from rated load
• Zinc plates housings and springs provide good corrosion resistance
• Springs are color coded and easily replaceable
• Anti-skid rubber acoustical pad
• All mounts elements are safe at solid load
• Recommended load range: from 50% of rated load to rated load
• Elastomer spring base cap provides better vibration isolation, load distribution, and noise reduction
• Rugged welded steel housing designed to withstand seismic and high wind forces
