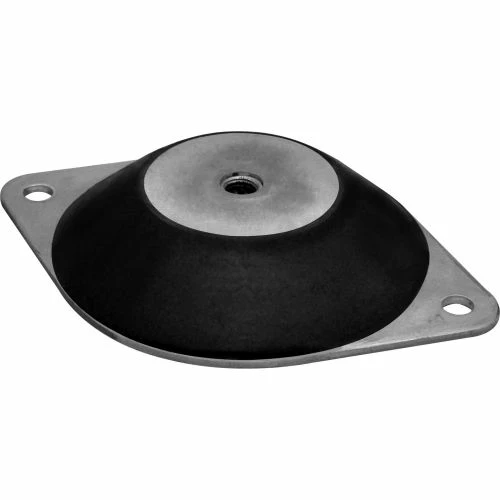

Vibrasystems Vibra Systems LF 6060 – Low Profile Compression Mount Double Deflection 55 Lbs. Max Load
Original price was: $8.70.$6.09Current price is: $6.09.
- Your questions, our prompt answers.
- Unbeatable Quality, Unbeatable Value
- Quality You Can Trust
- Shop quality, shop with us.
Low Frequency – Double deflection Compression Mounts have superior elasticity and provide effective isolation from vibration. LF mounts are designed for compression loads and are not recommended for shear or tension load. For shock applications maximum load should be less than 25% of maximum rated vertical load. Recommended for: Motors, fans, generators, pumps, compressors, transforms, electronics, cabinets, lab equipment, and many other industrial applications.
| Weight | 0.5 lbs |
|---|---|
| Max Load | 55 lbs |
| Mount Height | 0.9 in |
| Mount Hole Diameter | 1.2 Top Diameter in |
| Height | 7/8 in |
| Bolt Size | 1/4 – 20 in |
| Length | 3-1/2 in |
| Width | 2-3/8 in |
| Deflection | 0.1 in |
| Color Family | Black |
| Material | Metal |
| Package Quantity | 1 |
| Manufacturers Part Number | LF 6060 |
| Brand | Vibrasystems |
| Warranty | 6 Months After Installation |
