Sale!

Vibrasystems Vibra Systems NVS-3-50 – Leveling Compression Shear Mount 1-14×8" 10000 Lbs.

Original price was: $198.95.Current price is: $92.99.

SKU: Vibrasystems WBB2088362 Categories: Mounts, Pads & Vibration Dampers, Spring Floor Mounts Tags: 1, Fasteners & Hardware, Metal, NVS-3-50, Stainless Steel, Vibrasystems

Your questions, our prompt answers.
Unbeatable Quality, Unbeatable Value
Quality You Can Trust
Shop quality, shop with us.

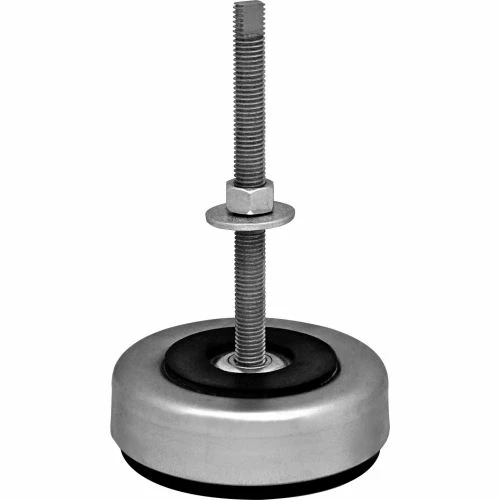

Vibra Systems NVS-3-50 – Leveling Compression Shear Mount 1-14×8″ 10000 Lbs.

NVS Compression shear mounts leveling solution is specifically for applications having both compression and shear loads. Precision fitted neoprene inserts provide maximum dampening of shock and shear forces. Recommended for lathes, milling machines, punch presses, heavy duty printing machinery, shears, brakes, injection mold, machines, grinders, and other industrial equipment where bolting to the floor is not required.

Features:

Built in leveling device enables quick easy and precise leveling of machinery
Circular groves on base of insert firmly anchor the machine to the floor preventing creeping or walking
Effectively isolates vertical and horizontal forces
Controls vibration shock and noise
Resistant to most oils and cleaning compounds
Meets OSHA requirements for anchoring machinery
Economical durable and saves on installation cost
Strong reliable construction provides long life

Weight	17.5 lbs
Max Load	10000 lbs
Mount Height	10.375 in
Mount Hole Diameter	9 in
Height	10-3/8 in
Bolt Size	1 – 14 x 8 in
Level Adjustment	5/8 in
Length	9 in
Width	9 in
Deflection	.4375 in
Color Family	Stainless Steel
Material	Metal
Package Quantity	1
Manufacturers Part Number	NVS-3-50
Brand	Vibrasystems
Warranty	6 Months After Installation
