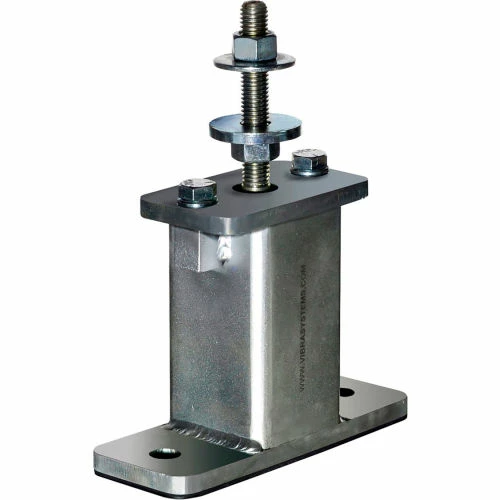

Vibrasystems Vibra Systems SRMT-123 – Spring Mount 165 Lbs. Solid Load Brown

Type “SRMT” series mounts with one inch deflection provide a solution to troublesome vibration problems. These mounts are preferred over most rubber mounts due to the greater static deflection of the spring. “Z” series spring mounts are designed for noise and vibration free application in critical areas on concrete or wooden floors.

Features:
The two or three piece cast iron housing the spring mounts also provide slotted mounting holes with a non-skid elastomeric acoustic pad on the base for easy bolting to the floor. Resilient elastomeric snubbers on the inner panels prevent metal to metal contact. These Mounts have a built in leveling device (external or internal). Spring elements are galvanized for long life without rusting and are color coded for easy field identification. Springs have 50% additional travel to solid beyond rated load as per the ASHRAE recommendations. These spring mounts can also be supplied with flat or non skid neoprene top surface in case of internal level adjustment.
